Yes Digital and Electric Power Supply Nail Art Printers

Chiny Yes Digital and Electric Power Supply Nail Art Printers dostawca
Yes Digital and Electric Power Supply Nail Art Printers dostawca Yes Digital and Electric Power Supply Nail Art Printers dostawca Yes Digital and Electric Power Supply Nail Art Printers dostawca Yes Digital and Electric Power Supply Nail Art Printers dostawca Yes Digital and Electric Power Supply Nail Art Printers dostawca

Duży Obraz :  Yes Digital and Electric Power Supply Nail Art Printers

Szczegóły Produktu:

Place of Origin: Guangdong, China (Mainland)
Nazwa handlowa: BTB
Orzecznictwo: CE ,FCC ,CCC,Rohs,EMC,LVD
Model Number: BTB-150-12

Zapłata:

Minimum Order Quantity: 100 Piece/Pieces
Cena: 0.00
Packaging Details: Standard packing,or According to the requirements of customer packaging.
Delivery Time: 7-10days
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 200000 Piece/Pieces per Week
Contact Now
Szczegółowy opis produktu

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BTB
  • Model Number: BTB-150-12
  • Output Type: DC
  • Connection: Desktop
  • color: white and black or other
  • warranty: 3 years
  • used: cctv camera /set top box/router
  • Packing: paper box or OEM colore box
  • protection: OVP .OPP SCP
  • Working temprature: -10 ~60°
  • material: aluminum
  • output: dual .singel,triple,quad,din rail
  • efficient: 86%
  • Certificate: CE SAA FCC

Packaging & Delivery

Packaging Details: Standard packing,or According to the requirements of customer packaging.
Delivery Detail: 7-10days

Specifications

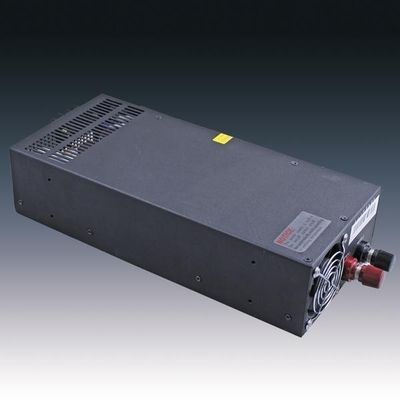

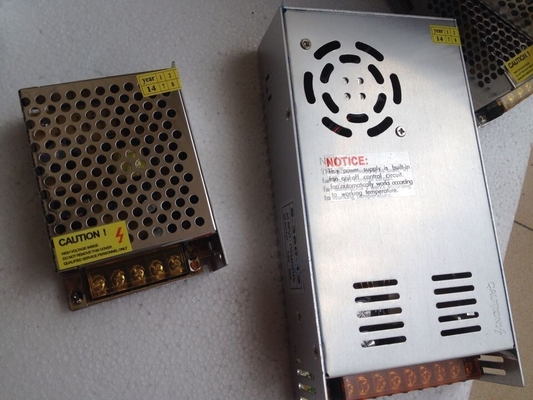

Switching Power Supply for LED
Rated Current:4.5A
Voltage:85~132VAC
Cooling by free air convection
3year warranty



Features:
High efficiency, high reliability and low cost
For AC power supply input global
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
PWM control and adjustment
Built-in dc electric fan forced air cooling
Built-in fan switch control
Working frequency 25 KHz
1 year warranty
Size: 215*115*50mm(L*W*H)




model

S-250-5

S-300-7.5

S-350-12

S-350-13.5

S-350-15

S-350-24

S-350-27

S-350-48

output

Dc output voltage

5V

7.5V

12V

13.5V

15V

24V

27V

48V

Output voltage tolerance

±2%

±2%

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

50A

40A

29A

25.8A

23.2A

14.6A

13A

7.3A

Output current range

0-50A

0-40A

0-29A

0-25.8A

0-23.2A

0-14.6A

0-13A

0-7.3A

Output power

250W

300W

348W

348.3W

348W

350.4W

351W

350.4W

Ripple and the noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Dc voltage adjustable scope

-10%,+12%

±20%

-16%,+10%

-12%,+11%

-10%,+20%

-16%,+10%

-4%,+18%

-15%,+17%

Start, rise, keep time

200ms,50ms,20ms Loaded with

input

Input voltage range

90~132 VAC/180~264VAC 47~63 Hz;The switch choice
254~370VDC

Exchange input current

6.5A/115 V 4A/ 230 V

efficiency

74%

76%

76%

79%

78%

81%

82%

83%

Impulse current

Cold start current
50A/115V 50A/230V

Leakage current

<3.5 mA/240VAC

Protection characteristics

Overload protection

105%~135%

Protection way: current limiting, automatic recovery

Overvoltage protection

115%~135%

Protection way: voltage limitation, automatic recovery

Fan on/off control

RT3 acuity 55 ℃ fan open more than 45 ℃, wind 80 ℃ quartile organs, the cut off output (5 ~ 7.5 V)

RT3 acuity 65 ℃ and 55 ℃, fan open more than 80 ℃, the authorities: cut off output (12 to 15 V)

RT3 acuity 70 ℃ open more than 60 ℃ fan, wind, 85 ℃ cut off: authorities output (24 to 48 V)

environment

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

security

Compression sex

Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC

Insulation resistance

Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms

standard

Safety standards

Accord with
UL1950

EMC standard

Drsign refer to FCC Part15 J Conduction Class A

other

weight

1.1.5Kg

packaging

12pcs/14.3Kg/0.93CUFT

350W switching power supply CE,KC,ROHS,PSE,TUV 24VDC switching power supply, DC power supply
100W Single Output Switching Power Supply
401 - 500W Output Power and 220V/110 Input Voltage ac dc power supply



  401 - 500W Output Power and 220V/110 Input Voltage ac dc power supply



Yes Digital and Electric Power Supply Nail Art Printers

Yes Digital and Electric Power Supply Nail Art Printers

Yes Digital and Electric Power Supply Nail Art Printers

Payment

To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERN UNION, PAYPAL, More payment options will be added in the near future.



After-sale service

All of the products we sell are with a certain time warranty.

during the warranty, anything wrong with it, like no working an unstable output voltage or current, damaged, my corporation will be responsible to fix it well for free and re-send it to the clients, But, the delivery cost should be paid by purchaser himself.

We will be very glad to provide the assistance during your installation and application at any time.



Contact Us

Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.



We will always be here and try our best to provide you our best service !



Thanks for you time!
